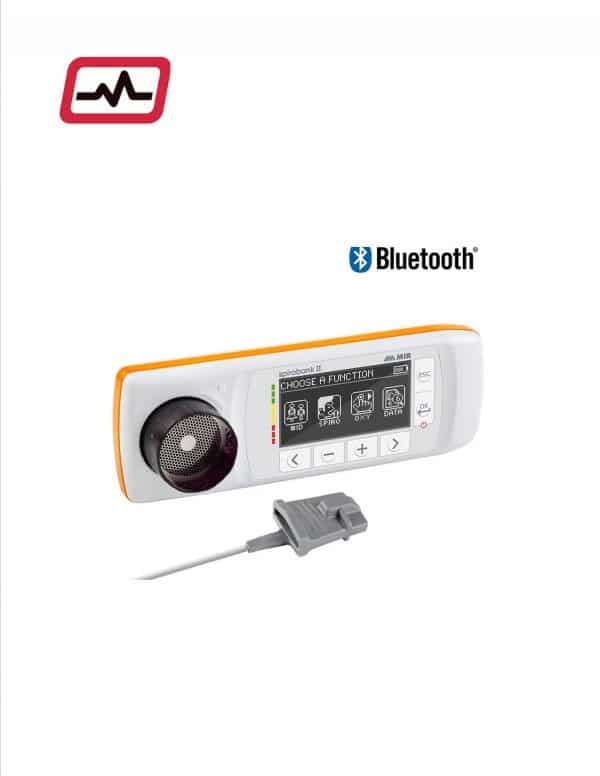

MIR Spirobank II Smart BLE (Bluetooth Low Energy) P/N:911028

Technical Specifications:

Display: 160 x 80 pixels.

Keypad: 6-key membrane keyboard.

Data Transmission: USB and Bluetooth Smart.

Device Dimensions: 160 mm x 55 mm x 25 mm.

Device Weight (With Battery): 145 g.

Flow Measurement: α 16 L/s.

Volume Accuracy: α 3% or 50 mL.

Flow Accuracy: α 5% or 200 mL/s.

Temperature Sensor: Semiconductor (0 – 45 ŒÁC), automatic BTPS conversion.

SpO2 Measurement (Optional): 0 – 99%.

SpO2 Accuracy (Optional): α 2%; between 70 Р99% SpO2.

Pulse Rate Measurement (Optional): 18 – 300 BPM.

Pulse Rate Accuracy (Optional): α 2 BPM or 2%, whichever is greater.

Configurable Alarms ON-OFF (Optional): SpO2 and pulse rate Min-Max, finger/sensor inserted, battery out of energy.

Main Spirometry Parameters: Using iPad software – FVC, FEV1, FEV1/FVC%, PEF, FEF 25 – 75, FET, Lung Age, VC, IVC.



Includes:

1 CD winspiro PRO PC software

Rechargeable batteries

1 USB cable

1 Nose clip

1 Carrying case

1 User manual

3 Years Warranty & Unlimited Tech Support

Spirometry Parameters (Stand Alone) FVC, FEV1, FEV1%, FEV6, PEF, FEF25- 75%, FIVC, Lung Age, VC, IVC.

Oximetry Parameters (Stand Alone) %SpO2 [Baseline, Min, Max, Mean], Pulse Rate [Baseline, Min, Max, Mean].

Spirometry Parameters (On the App) FVC, FEV1, FEV1%, PEF, FEF25–75, FET, Lung Age, VC, IVC.

Oximetry Parameters (On the App) %SpO2 [Baseline, Min, Max, Mean], Pulse Rate [Baseline, Min, Max, Mean].

Spirometry Parameters (PC Based) FVC, FEV1, FEV1/ FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrap. Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/ FVC, FEV2, FEV2/ FVC, FEV3, FEV3/ FVC, FEV6, FEV1/ FEV6, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/ FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/ tI, tE/tTOT, MVV (measured), MVV (calculated).

Oximetry Parameters (PC Based) SpO2 [Baseline, Min, Max, Mean], Pulse Rate [Baseline, Min, Max, Mean], T90, T89, T88, T5 , Index [12s], SpO2 Events, Pulse Rate Events.
