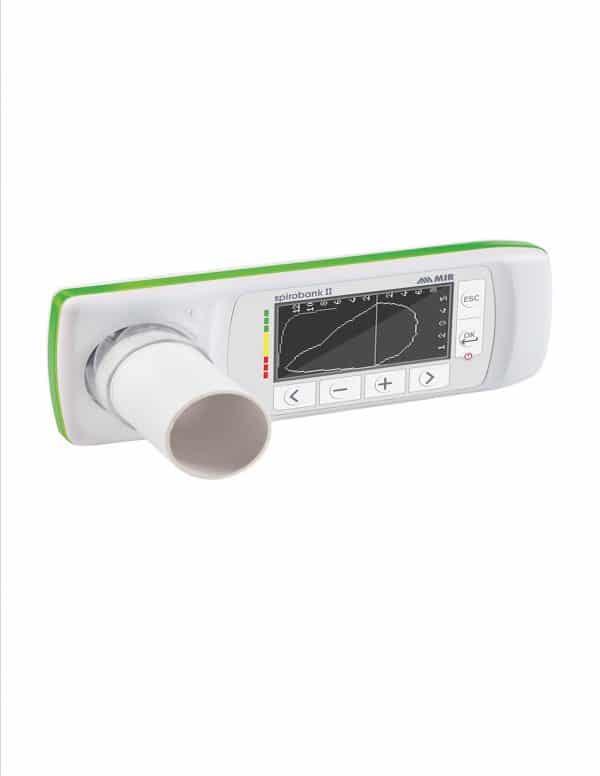

MIR Spirobank II Basic Spirometer

//MIR Spirobank II Basic Spirometer

MIR Spirobank II Basic Spirometer


1 Winspiro Pro CD

Rechargable Batteries

USB Cable

1 Nose Clip

1 Carrying Case

1 User Manual CD

2 Years Warranty


With an innovative redesign and user-friendly technology, the new MIR Spirobank II Spirometer establishes new standards in the field of portable spirometry. Perform FVC and VC tests quickly and easily through an icon-based navigation menu.


Test Parameters:

FVC, FEV1, FEV1%, PEF, FEF25-75%, FET, EVOL (Extrapolated Volume), ELA (Estimated Lung Age), VC, IVC, IC, ERV

Features and Benefits:

Basic parameters are always activated, ideal for family doctors.

High resolution display screen, backlit for use in emergency medicine.

Estimated Lung Age (ELA) immediately measures benefits after quitting smoking.

Indicator light provides immediate diagnosis.

Tests are analyzed directly on the display without having to connect to a computer.

Memory can hold up to 10,000 tests.

Long-life rechargeable battery (around 40 hours).

USB connection – hook up portable spiromter to computer.


Technical Specifications:

Flow Sensor: Bi-directional digital turbine

Volume Range: 10 L

Flow Range: ± 16 L/s

Volume Accuracy: ± 3% or 50 mL

Flow Accuracy: ± 5% or 200 mL/s

Dynamic Resistance at 12 L/s: <0.5 cmH2O/L/s

Temperature Sensor: Semiconductor (0-45°C)

Display: LCD Backlit Display with Traffic Light system

Resolution: 160×80 pixel

Power Supply: Lithium battery 3.7 V, 1100 mA, rechargeable also via USB

Keyboard: 6 keys Membrane

Keyboard Connectivity: USB 2.0 On-The-Go and Bluetooth® 2.1

Flash Memory Capacity: 10.000 tests

Dimensions: 160 x 55 x 25 mm

Weight: 140 gram with battery (less than 1 pound)
