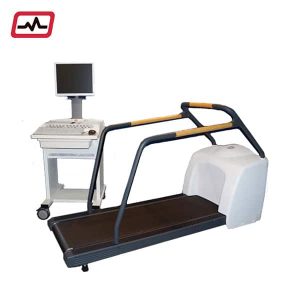

GE CASE Stress System
Stress system has 18 Months Parts and Labor Warranty
Refurbished Ge Case Stress System
The GE Case Stress System:
• ECG Analysis Frequency: 500 Hz
• ST Measurements: ST amplitudes, slope, integral, index, ST/HR slope, ST/HR loops, ST/HR index up to 15 leads
• E, J and Post-J Point: Manual or computer selected
• Signal Processing: Incremental median updating technique
• Baseline Correction: Finite Residual Filter (FRF) and/or Cubic Spline analysis
• QRS Detection and Analysis: Automatic or manual lead selection
• ECG Output: Real-time ECG/QRS beep/TTL synchronization output
• Heart Rate: Automatic arrhythmia detection, documentation and annotation
• Full-Disclosure ECG: Beat-to-beat ECG storage & event review
• Reanalysis: Post-test medians measurements from E, J and post-J point selections
• ECG Interpretation (Optional): Marquette* 12SL* resting ECG analysis program for adults and pediatrics
• Additional ECG Function: XTI stress interpretation; Vectorcardiography (15 lead)
GE Case Data Aquisition:
• Technology: Active, “Type BF” floating isolated powered 14-channel acquisition module with built-in lead-fail detection and lead prep impedance measurement
• Sampling Rate: Over-sampling @ 4000 Hz
• Dynamic Range: 320 mV, ± 10 mV signal superimposed on ± 150 mV DC offset
• Resolution: 4.88 μV/LSB @ 500 Hz
• Noise: < 15 μV peak-to-peak noise over 0.01 to 150 Hz (-3 dB) bandwidth • Frequency Response: -3 dB, display and writer • High-Pass Filter: 0.01 (or 0.05 Hz, special use) with DC offset control • Low-Pass Filter: 20, 40, 100, 150 Hz (selectable) • Line Filter: 50.0 or 60.0 Hz notch filter (selectable) • Baseline Correction: Cubic Spline algorithm • Artifact/Baseline Correction: Finite Residual Filter (FRF) analysis • Common Mode Rejection: > 140 dB (123 dB with AC filter disabled)
• Input Impedance: > 10 M Ohms @ 10 Hz, defibrillator protected
• Patient Leakage: < 10 μA • Pace Detect: Orthogonal LA, LL and V6; 750 μV @ 50 μs Communications/Storage Options: • MUSE* systems compatible via diskette; network (optional) • MUSE Web compatible for retrieval view and printing of MUSE system data • Local storage: Minimum 40 GB hard drive storage of complete ECG record and test results • PDF export of final reports with auto naming protocols also from Microsoft® Word and Excel • XML export of specified data • CASE* network server with editing workstations • Windows® XP operating system Display: • Display Type: LCD (flat panel display) • Display Resolution (Minimum): LCD-1280 x 1024 • Display Size: 17 or 19-inch LCD • Monitored Leads: 3, 6, 12 or 15 • Displayed Leads: Number on screen 3, 6, 12 or 15 • Display Format: 3 rhythm, 3 rhythm + medians, 3 rhythm + trends, 6 rhythm, 4 x 2.5 + 1 rhythm, 2 x 6 • Display Speeds 25, 50 mm/s • Display Sensitivity/Gain: 2.5, 5, 10, 20 mm/mV • Displayed vital Signs Data (Configurable): Heart rate, target heart rate, blood pressure, exercise clock, stage clock, phase clock, protocol, speed, grade, Watts, METS, RRP and SpO2 • Displayed data ST scan/median complexes, arrhythmias, ventricular ectopic/min counter, 3 to 12 lead waveforms, lead check torso and 12 leads, waterfall display, trends, tabular summary, stored ECG strips, interpretation, time-of-day clock, patient name, warning messages and prompts Writer: • Writer Technology: “Instant” load, thermal dot array • Writer Leads: 3, 6, 12 or 15 leads (standard, NEHB, Cabrera, configurable) • Writer Speeds: 5, 12.5, 25 and 50 mm/sec (± 2%) • Writer Sensitivity/Gain: 2.5, 5, 10 or 20 mm/mV (± 5%) • Writer Resolution: Horizontal 1000 lines/sec x 200 dpi dedicated local printing. 200 x 200 dpi generic printing • Paper Type: Thermal, perforated, fan-fold, 300 sheets/pack • Paper Size: A size 214.63 x 280 mm (8.45 x 11 in); A4 size 210 x 297.5 mm (8.27 x 11.0 in) Physical Specifications: • Height: 148 cm (58 in) with no monitor installed • Width: 62 cm (24 in) with paper tray removed • Depth: 75 cm (30 in) • Weight 68 kg (150 lb) without monitor Minimum Server Requirements: • Microprocessor: Pentium® ! 1.6 GHz • RAM: 256 MB • Hard Drive: > 40 GB
• Operating system: Windows 2000 Server; Windows 2003 Server
GE CASE stress system Interfaces Included:
• Acquisition module
• Keyboard (PS/2) anti dedicated stress keypad (USB)
• Mouse (PS/2)
• Built-in thermal printer (USB)
• 100 Mbps Ethernet MUSE compatible
• 6 serial ports: (COM 1-2, COM A-D) treadmill, BP, ergometer, SpO2
• 4 analog and 1 TTL (trigger) output analog ergometer, camera sync, etc.
• Diskette drive: 3 1/2 in, 1.44 MB
• PC-compatible for data storage
• CD-R/W drive: readable for software updates; archivable data optional
GE CASE stress system Electrical Power:
• Power Supply: AC operation only
• Operating voltage range 100-120 VAC, 50-60 Hz, 2.8 A; 200-240 VAC, 50-60 Hz, 1.4 A
• Power consumption 350 W max (1200 BTU/hr); < 250 W normal (850 BTU/hr); < 30 W standby (100 BTU/hr)
GE Case Operating Conditions:
• Temperature: +10 to 40°C (+50 to 104°F)
• Humidity: 20 to 95% RH non-condensing
GE CASE stress system Storage/Transport Conditions:
• Temperature -40 to +70°C (-40 to 158°F); Paper discoloration may occur at high temperatures
• Humidity: 15 to 95% RH non-condensing
Option-Extended Warranty Available
Check it out our Case Monitor: GE Marquette case stress test monitor
