Overview & Clinical Applications
The Burdick Quest and TM55 Treadmill Stress Test System is listed as a Quest stress test system paired with a digitally controlled TM55 treadmill, with a touch screen, pull-down menus, and the Logistep guide walking users through the test.
▸ Touch Screen Workflow Touch screen with pull-down menus and Logistep guide, everything on one screen, as listed.
▸ Resting + Stress ECG Performs both resting 12-lead ECGs and stress tests on one system, as listed.
▸ 15+ Report Configurations Full-range reporting with over 15 different report configurations, as listed.
Technical Specifications & Features
| Component | Detail |
|---|---|
| Product Type | Burdick Quest and TM55 Treadmill Stress Test System |
| Workflow | Touch screen, pull-down menus, Logistep guide; correct phase changes without restarting |
| Tests | Resting 12-lead ECGs and stress tests on one system |

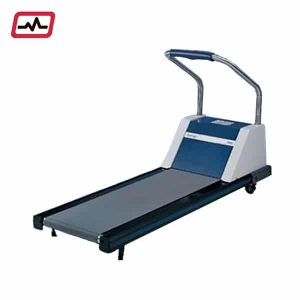

| Treadmill | Digitally controlled treadmill (TM55, as listed in the system name) |
| Dimensions | 60 x 25 x 34 in (152 x 63 x 86 cm) |
| Weight | Under 170 lbs. (78 kg) |
| Monitor | 15 in high-resolution color with integrated touchscreen; tilt ±15°, swivel ±90°; 3, 4 or 6 ECG channels real-time; 8 seconds per lead in 3-channel mode |
| Keyboard | QWERTY layout; dedicated ergometer keys for speed, grade, start and stop |
| Interfaces | RS-232 to treadmill, bicycle ergometer, optional automatic blood pressure monitor; TTL pulse for QRS detection, 50 msec delay; 4 user-selectable analog outputs |
| Power | 115/230V AC ±10%, 2.5/1.25 A, 50/60 Hz, nominal 300 VA max |
| Chart Recorder | Pre-grided thermal paper, Z-fold, 8.5 x 11 in or 210 x 300 mm A4; 216 mm thermal dot array; paper speed 10, 25, 50 mm/sec ±2%; gain 5, 10, 20 mm/mV ±5% |
| Frequency Response | 0.05 Hz to 150 Hz ±10% |
| ECG Computations | 8-beat average, 30-250 bpm, updated every second; ST level/slope for 12 leads; QRS detection II, V2, V5 with switching |
| Protocols | Preprogrammed: Manual, Bruce, Modified Bruce, Balke, Naughton, Ellestad, Kattus, Ramp, Astrand, Modified Astrand, Pharmacological; user-defined: 20 protocols, up to 30 stages each, plus warmup and recovery |
| Patient Module | 1.3 x 4.3 x 3.8 in (3.3 x 10.92 x 9.65 cm); under 1 lb (0.5 kg); defibrillation protection to 360 J, 5 kV; CMR over 120 dB at 60 Hz; noise under 30 µVpp; pacemaker indication per EC13; defibrillation recovery max 8 seconds |
Compatibility & System Fit
Listed with RS-232 interfaces to treadmill, bicycle ergometer, and optional automatic blood pressure monitor, and as a Quest system with a TM55 treadmill. No specific treadmill speed, grade, or surface figures are stated; confirm fit with an AIM Cardio expert before ordering.
• Check Before Ordering: Confirm the included accessories and configuration with an AIM Cardio expert before ordering.
Included Hardware & Accessories
Burdick Quest and TM55 Treadmill Stress Test System: As listed.
Not claimed as included: No accessories beyond those listed are claimed as included. TM55 treadmill speed, grade, surface, and motor figures are not stated on this page. Confirm with an AIM Cardio expert.
AIM Cardio Testing & Warranty Coverage
Tested Before Shipping — AIM Warranty & Guarantee
Every system is tested, run, and cycled before shipping to help ensure proper operation, and is backed by the AIM Cardio Warranty and Guarantee. Contact our specialists to confirm configuration and coverage for your order.
FAQ — Burdick Quest and TM55 Treadmill Stress Test System
What is the Burdick Quest TM55 system?
A Quest stress test system with a TM55 treadmill.
Does it do resting and stress ECGs?
Yes, both resting 12-lead ECGs and stress tests on one system.
What is the monitor?
A 15 in high-resolution color touchscreen, tilt ±15°, swivel ±90°.
How many report configurations are listed?
Over 15 different report configurations.
What should I confirm before ordering?
Confirm the included accessories and configuration with an AIM Cardio expert before ordering.
