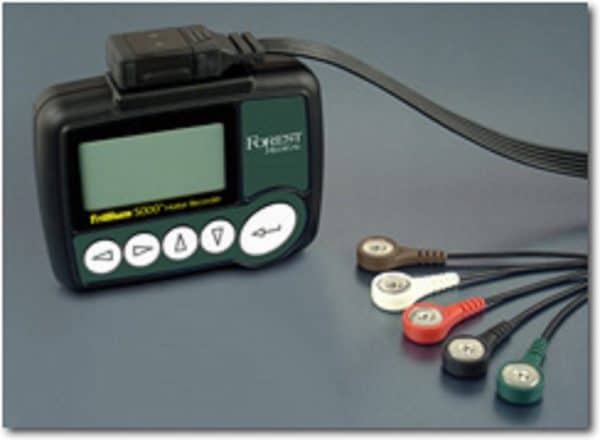

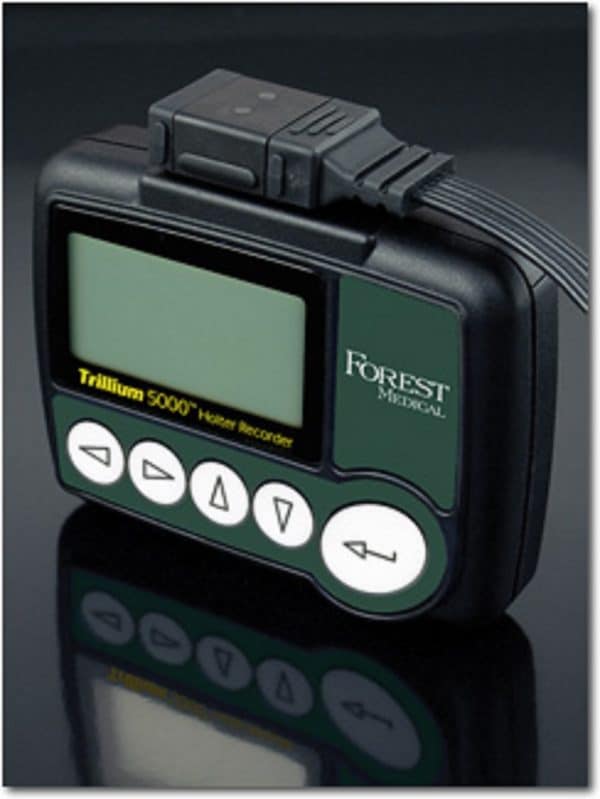

Trillium 5000 Digital Holter

Specifications:

• Channels: 2 or 3
• Recording Time: 24 or 48 Hours
• Recording: Continuous (Full Disclosure)
• Memory: Non-volatile Flash-Card
• Resolution: 10-bit sampling
• Sample Rate: 512 samples per second per channel
• Frequency Response: 0.05 Hz – 60 Hz
• Gain Settings: 1/2X, 1X, and 2X
• Power Requirements: (1) AA Alkaline IEC-LR6
• Overall size: 2.78 x 3.75 x 0.78 inches (88.9 x 162.6 x 24.1 mm)
• Weight Including Batteries: 4 ounces (112 grams)
• Operating Temperature: 32° F to 113° F (0° C to 45° C)
• Non-operating Temperature: -4° F to 149° F (-20° C to 65° C)
• Operating Humidity: 10% to 95% (non-condensing)
• Non-operating Humidity: 5% to 95% (non-condensing)
• Patient Cable: 5 or 7 Lead
• Signal Verification: LCD Display – ECG Display on LCD
• Five button keypad operation with LCD Display
• Meets the ANSI/AAMI standard for ambulatory electrocardiographs (EC38) including pacemaker and use for infants
• LCD Display
