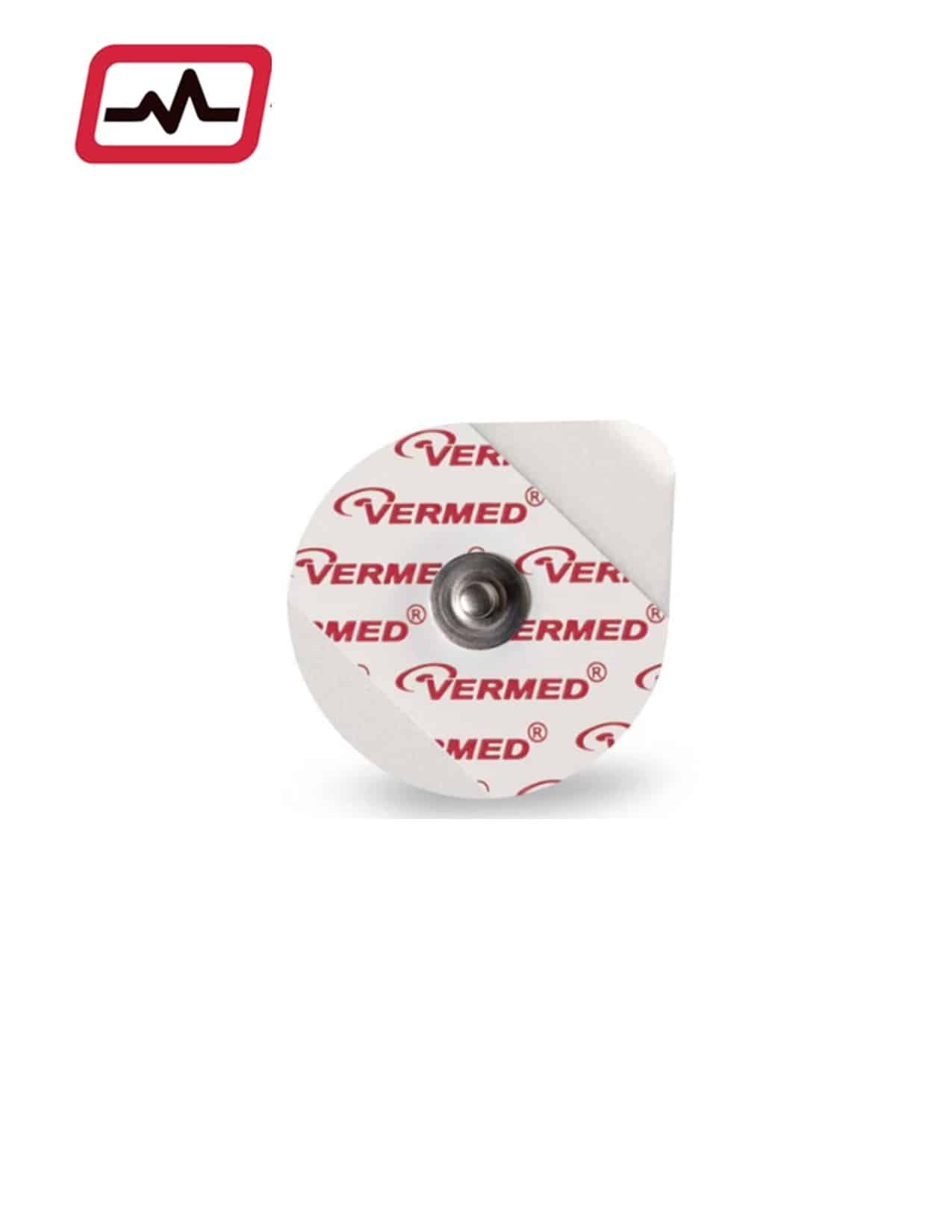

Stress Test Electrodes Monitoring Electrode

Item: Stress Test Electrodes Monitoring Electrode
Rating: 5
Author: Dr. James

DISPOSABLE STRESS TEST/ECG ELECTRODES

1 1/2″ foam, 10% chloride wet gel

60 per pouch.

600 Per Case

Reorder Number: AIM5-60

Call Us Today! 818.362.7702

👉 Request a Quote 👈

SKU: SKU-213 Categories: DISPOSABLES, ELECTRODES Tags: Disposables for Stress System, Electrodes, Stress Electrodes, Treadmill Electrodes Brand: Burdick, Cardiac Science, GE Parts, Marquette, Mortara, Quinton, Schiller, Spacelabs Healthcare

Description

Stress Test Electrodes

Key features:

10 varying-size electrodes is perfect for diagnostic stress testing.
4ea. 2.25″ round foam wet gel electrodes, 4ea. 1.5″ teardrop foam wet gel electrodes, 1ea. 1.75″ x 1.625″perforated foam wet gel electrode (2 square electrodes)
Ag/AgCL, high chloride, wet gel electrodes hydrate the skin and produce fast, clear tracings
Aggressive adhesive keeps electrodes on the patient, no motion artifact or repeat testing
Hypoallergenic adhesive
Latex Free

Product Type:	Medical
OEM Equipment:	Performance Plus
Adaptor	Stainless Steel
Xray Translucent	No
Shelf Life Months	18
Repositionability	No
Sensor Diameter (in)	0.42
Sensor Diameter (mm)	10.592
Substrate Thickness (in)	0.063
Substrate Thickness (mm)	1.588
Total Surface Area (in²)	1.7972
Total Surface Area (mm²)	45.649
Gel Area (in²)	0.3068
Gel Area (mm²)	7.7927
Adhesive Area (in²)	1.4904
Adhesive Area (mm²)	37.8562
Resealable Pouch	Yes
Lead Wire Length (in)	N/A
Lead Wire Color
Adhesive	Acrylic, Medical Grade
Release Liner	PS
Sensor Polymer	Ag/AgCl plated ABS
Lead Wire Jacketing	N/A
Lead Wire Cord	N/A
Packaging Material	Paper/PE/Foil/PE
Packaging Size LxW (in)	12.5 x 7.75 x 8.75
Packaging Size LxW (cm)	31.75 x 19.685 x 22.225
Carton Size / Qty (in)	n/a
Carton Size / Qty (cm)	n/a
Passed ISO 10993	Passed
Latex Free	Yes
Sensitive Skin Compatible
Any Halogenated Hydrocarbon Content	None
Any Pthalate Derivative Content	None
RoHS Compliance	Yes
REACH	Yes
Regulatory Status	CE Mark according to MDD 93/42/EEC CE marked
ACZ Impedance (Ohm)	32
DC Voltage Offset (mV)	0.38
SDR Slope (mV/s)	0.07
ACZ Impedance Repeat (Ohm)	25
COIIN (uV)	7
Bias Current Tolerance (mV)	7
Pediatric	No
Foam Sponge Material	Polyurethane Reticulated Foam
Size Length Width (cm)	20.32 x 30.48
Size Length Width (in)	8 x 12
Integrated Abrader	No
Quantity Per	60

Use with your GE, Marquette, Quinton, Burdick, Mortara, Norav, Cambridge, Nasiff, Schiller and Philips stress treadmill system.

Stress Test Electrodes Monitoring Electrode

Stress Test Electrodes

Product Type:

Medical

OEM Equipment:

Performance Plus

Adaptor

Stainless Steel

Xray Translucent

No

Shelf Life Months

18

Repositionability

No

Sensor Diameter (in)

0.42

Sensor Diameter (mm)

10.592

Substrate Thickness (in)

0.063

Substrate Thickness (mm)

1.588

Total Surface Area (in²)

1.7972

Total Surface Area (mm²)

45.649

Gel Area (in²)

0.3068

Gel Area (mm²)

7.7927

Adhesive Area (in²)

1.4904

Adhesive Area (mm²)

37.8562

Resealable Pouch

Yes

Lead Wire Length (in)

N/A

Lead Wire Color

Adhesive

Acrylic, Medical Grade

Release Liner

PS

Sensor Polymer

Ag/AgCl plated ABS

Lead Wire Jacketing

N/A

Lead Wire Cord

N/A

Packaging Material

Paper/PE/Foil/PE

Packaging Size LxW (in)

12.5 x 7.75 x 8.75

Packaging Size LxW (cm)

31.75 x 19.685 x 22.225

Carton Size / Qty (in)

n/a

Carton Size / Qty (cm)

n/a

Passed ISO 10993

Passed

Latex Free

Yes

Sensitive Skin Compatible

Any Halogenated Hydrocarbon Content

None

Any Pthalate Derivative Content

None

RoHS Compliance

Yes

REACH

Yes

Regulatory Status

CE Mark according to MDD 93/42/EEC CE marked

ACZ Impedance (Ohm)

32

DC Voltage Offset (mV)

0.38

SDR Slope (mV/s)

0.07
