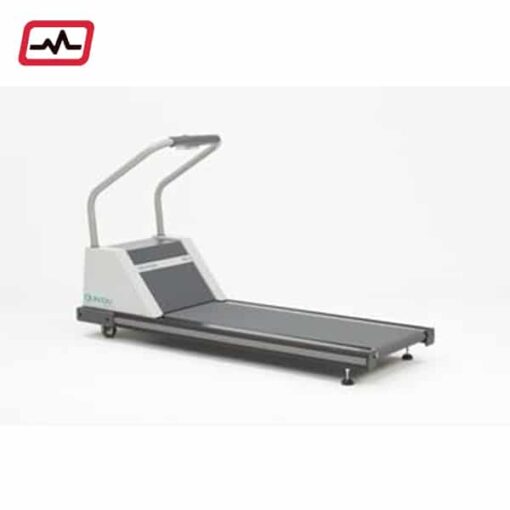

Quinton TM-55 Treadmill

Quinton TM-55 Treadmill: Advanced Solution for Cardiac Stress Testing

The Quinton TM-55 Treadmill is a premier choice for cardiac stress testing, offering a blend of precision engineering, patient safety, and seamless integration with leading stress testing systems. Designed to meet the rigorous demands of clinical environments, the TM-55 ensures accurate diagnostics and reliable performance.

Key Features and Specifications

• Performance Specifications

  • Speed Range: 0.8 to 9.6 mph (1.3 to 15.4 km/h), adjustable in 0.1 mph increments, accommodating various patient fitness levels.
  • Incline Range: 0% to 25%, adjustable in 0.5% increments, supporting diverse stress testing protocols.
  • User Weight Capacity: Supports up to 500 lbs (227 kg), ensuring suitability for a wide patient demographic.

• Physical Dimensions and Design

  • Dimensions: 46.5 inches (H) x 80.2 inches (L) x 29.9 inches (W) [118 cm x 204 cm x 75.9 cm], providing a spacious and comfortable walking area.
  • Running Surface: 20 inches (W) x 55 inches (L) [51 cm x 140 cm], offering ample space for patient movement.
  • Weight: Approximately 352 lbs (160 kg), reflecting its robust construction.

• Integration Capabilities

  • Seamlessly integrates with Quinton Q-Stress, Burdick Quest, and Burdick HeartStride cardiac stress testing systems, allowing for synchronized operation and data sharing.

Benefits of the Quinton TM-55 Treadmill

• Enhanced Patient Safety

  • Equipped with a digitally controlled AC-drive system, the TM-55 ensures smooth and gradual speed transitions, minimizing sudden movements and reducing patient anxiety.
  • The whisper-quiet Ultradrive™ system provides a slow, safe start, enhancing patient comfort during tests.

• Improved Clinical Workflow

  • Full integration with leading stress testing systems enables clinicians to control the treadmill directly from their workstations, streamlining the testing process.
  • The intuitive left-to-right navigation and clear icons guide technicians seamlessly through stress tests, improving efficiency.

• Durability and Reliability

  • Constructed with high-quality materials and designed with minimal moving parts, the TM-55 requires minimal maintenance, ensuring consistent performance even under heavy use.

Common Issues and Troubleshooting

• Error Codes and Their Meanings

  • Users may occasionally encounter error codes, such as “treadmill communication is disconnected.” This issue often stems from connectivity problems between the treadmill and the stress testing system. Ensuring all cables are securely connected and restarting the system can often resolve this error. For persistent issues, consulting the user manual or contacting authorized service personnel is recommended.

• Maintenance Tips

  • Regular Cleaning: Keep the treadmill free from dust and debris to ensure optimal performance.
  • Belt Alignment and Tension: Periodically check and adjust the walking belt to prevent slippage and ensure smooth operation.
  • Software Updates: Ensure that the treadmill’s software and the connected stress testing system are up-to-date to maintain compatibility and performance.

Conclusion

The Quinton TM-55 Treadmill stands out as a reliable and efficient tool for cardiac stress testing. Its advanced features, seamless integration capabilities, and focus on patient safety make it an invaluable asset in clinical settings. By adhering to regular maintenance practices and understanding common troubleshooting steps, healthcare providers can ensure the TM-55 operates at peak performance, facilitating accurate and effective patient assessments.

Frequently Asked Questions (FAQs)

1. What systems are compatible with the Quinton TM-55 Treadmill?

   • The TM-55 integrates seamlessly with the Quinton Q-Stress, Burdick Quest, and Burdick HeartStride cardiac stress testing systems.

2. What is the maximum weight capacity of the TM-55?

   • The treadmill can accommodate patients weighing up to 500 lbs (227 kg).

3. How do I address communication errors with the TM-55?

   • Communication errors often result from connectivity issues. Ensure all connections are secure and consider restarting the system. If the problem persists, consult the user manual or contact authorized service personnel.

4. What are the power requirements for the TM-55?

   • The TM-55 operates on 115V, 50/60 Hz, 20 amps for domestic settings and 230V, 50/60 Hz, 10 amps for international settings.

5. Is the TM-55 suitable for patients with mobility issues?

   • Yes, the TM-55’s smooth and gradual speed transitions, along with its sturdy handrails, make it suitable for patients with varying mobility levels.
