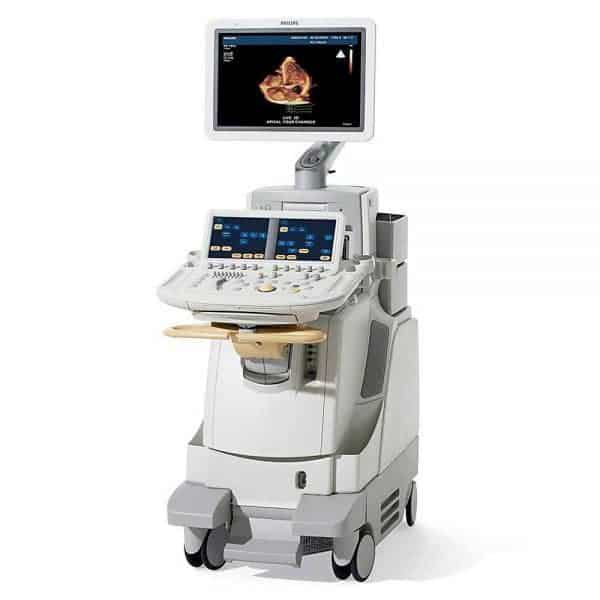

Philips iE33 Ultrasound

Philips iE33 Ultrasound:

Overview

Application training for the Philips iE33

Philips iE33 Service options

Free technical support is available during installation and over the course of the standard limited warranty. Technical support is available after the warranty period at an hourly cost per issue.

Philips iE33 Maintenance

Recommends the use of a surge protector along with a dedicated power outlet. Probes should be disinfected after every use with a disinfectant wipe proven not to damage the. Recommends one PM visit (preventative maintenance) every year.

Philips iE33 Dimensions & Weight

Height: (adjustable, maximum) 1626 mm (64 in), (minimum) 1397 mm (55 in)
Width: 559 mm (22.0 in)
Depth: 1092 mm (43 in)
Weight: (no Peripherals) 150kg (331lbs.), approx. 480 lbs with packaging

iE33 Specifications

Philips xSTREAM imageformer architecture
Up to 442,176 total digital channels (xMATRIX configuration), 57,000 total digital channels (non xMATRIX configuration)
Displayed Imaging Depth: 1 – 39 cm (transducer dependent)
Up to 180 dB system dynamic range

 iE33 Philips Electrical power

Voltage 100V-127V, 220V-240V
Frequency 50/60 Hz
Power consumption: 750VA – 900VA depending on system configuration

(photos of system are not actual photos of system, additional photos of your order will be sent upon request.)
