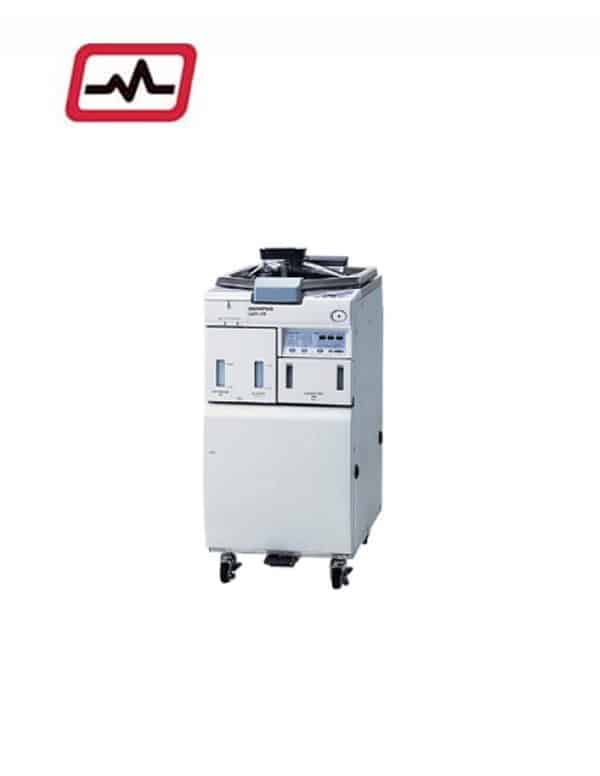

Olympus OER Pro Scope Washer

The Olympus OER PRO Endoscope Washer is a medical equipment utilized for automated cleaning and disinfection of endoscopes in healthcare facilities. Its purpose is to ensure that endoscopes are safely and effectively cleaned and disinfected, in compliance with stringent hygiene standards required for medical procedures.

The washer’s user-friendly and compact design facilitates seamless integration into existing clinical workflows. It can accommodate different endoscope sizes and types and has a capacity to wash and disinfect two endoscopes simultaneously.

The Olympus OER PRO Endoscope Washer employs a multi-stage cleaning process, consisting of pre-cleaning, enzymatic cleaning, high-level disinfection, and final rinse. The entire process is fully automated and takes approximately 36 minutes to finish. This allows healthcare professionals to allocate their time to other tasks while the washer takes care of cleaning and disinfecting the endoscopes.

FEATURES:

Design:The OER-Pro is specifically designed by an endoscope manufacturer, Olympus, with 35 years of experience in flexible endoscope reprocessor manufacturing.

Functionality:It offers high-level disinfection for Olympus flexible endoscopes and accessories, ensuring optimal reprocessing outcomes.

Efficiency:The OER-Pro has a quick reprocessing time, capable of simultaneously reprocessing two flexible endoscopes in 26-29 minutes.

Compact Design:With a smart and compact design, the OER-Pro requires less space than conventional endoscope reprocessors, making installation and maintenance easier.

Disinfectants:It can be used with two dedicated high-level disinfectants: Acecide-C and ALDAHOL 1.8, both tested and approved by Olympus for compatibility with their endoscopes.

Data Management: The OER-Pro offers electronic data management solutions to simplify data input, streamline record keeping, and reduce the need for paper receipt searches.

Dimensions: 450(W)x977(H)x765(D)mm
Weight:Weight: 265lbs.

Power Supply:

Voltage 120 V AC

Frequency 60 Hz

Input current 5.5 A

Voltage fluctuation ±10%

Ultrasonic Wave:

Frequency 36 ±2 kHz

Power 100 W ±20%

EMC:

Applied Standard:

IEC 61326: 2012

This equipment complies with the standards listed in the left column.

CISPR 11 of emission:

Group1,Class B

Electrical Safety:

Applicable Standard:

UL 61010-1: 2012

CSA C22.2

No. 61010-1: 2012

CSA C22.2

No. 61010-2-040: 2007

IEC 61010-1: 2010

IEC 61010-2-040: 2005

This equipment complies with the standard listed in the left column.

Installation category: II

Pollution degree: 2

Radio Transmitter:

Compliance

ISO/IEC 18000-3 (Mode1)

Center Frequency

13.56 MHz

Modulation

ASK

Effective Radiated Power

300 mW±20

Shipping Environment:

Ambient temperatures –47 to +60°C (–52 to +140°F)

Relative humidity 10 – 90%

Atmospheric pressure 700 – 1060 hPa

Operating Environment:

Ambient temperatures 10 – 40°C (50 – 104°F)

Relative humidity 30 – 85%
Elevation 3000 meters (Maximum)

Designed for use Indoors

Water supply flow 17 l/min. or more when the water faucet is fully open

Water supply pressure 0.1 – 0.5 MPa (include water hammer)

Water supply temperature: Max. 28°C

Water type Potable water or Softened water (Purified water cannot be used)

Water hardness 400 ppm (maximum)0 – 150 ppm (Recommended value)

Top 5 Benefits:

1. Thorough and Efficient Cleaning: With the OER-PRO washer, endoscopes undergo a comprehensive cleaning process, utilizing high-pressure water jets to effectively remove debris and organic matter from both the inside and outside of the instrument.
2. Automated Cleaning: As an automated machine, the OER-PRO can clean multiple endoscopes simultaneously, saving time and reducing the risk of human error. This provides consistent and dependable cleaning outcomes.
3. User-Friendly: The OER-PRO is designed to be user-friendly, featuring an intuitive interface that allows for effortless operation. Customizable settings can also be easily adjusted to cater to specific cleaning needs.
4. High Capacity: The OER-PRO has a substantial capacity, capable of cleaning up to six endoscopes simultaneously. This makes it ideal for use in busy medical facilities where high volume cleaning is required.
5. Enhanced Safety: The OER-PRO is equipped with safety features that help to minimize the risk of cross-contamination and infection. Its built-in disinfectant system ensures that endoscopes are disinfected after cleaning, while the leak detection system alerts the operator of any leaks or issues during the cleaning process.

The Olympus OER-Pro is an automated endoscope reprocessor designed by Olympus to provide high-level disinfection for flexible endoscopes and accessories.

Overall, the Olympus OER-Pro is a reliable and efficient automated endoscope reprocessor that ensures high-level disinfection for flexible endoscopes, reflecting Olympus’s expertise in the field of endoscopy equipment.
