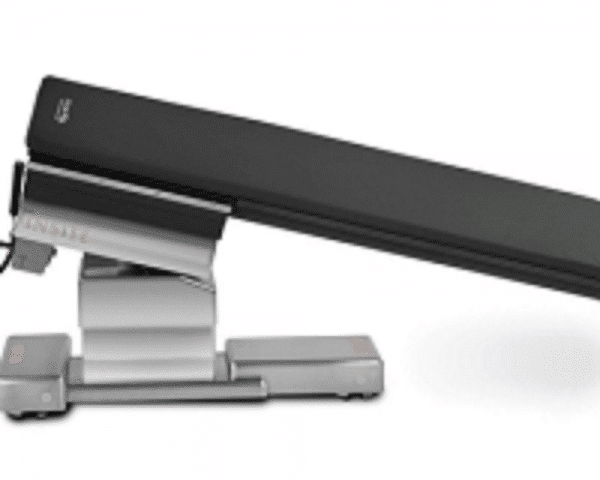

Mizuho OSI Insite 6844 Table
Stress Echo Bed / echo tables

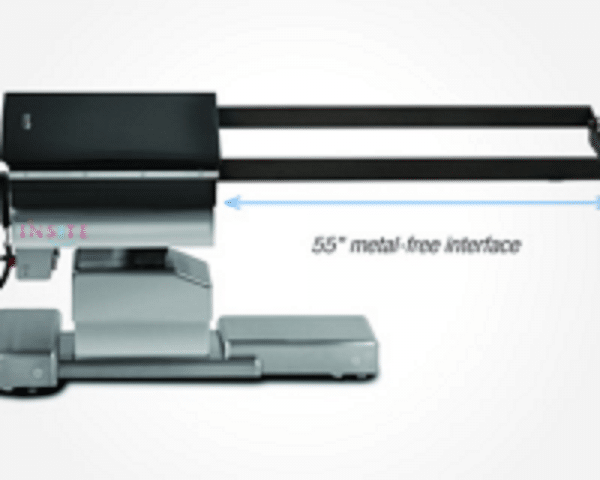

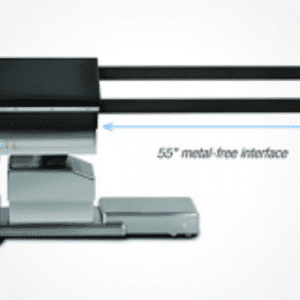

Unobstructed Imaging: 55” (140 cm) No Metal Zone

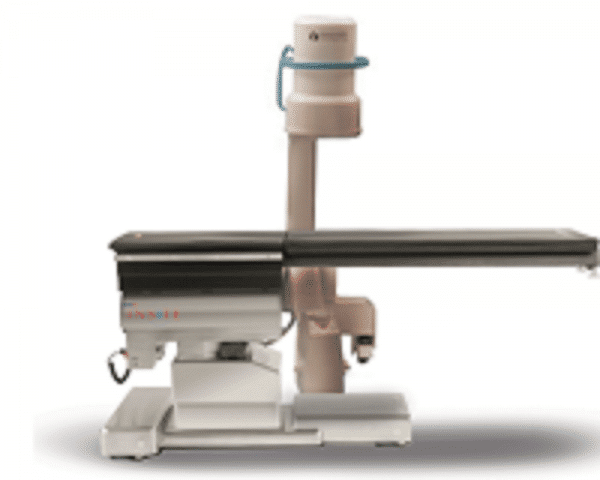

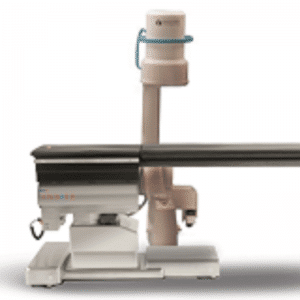

Interfaces with the BodyTom®, a portable, full body, multi-slice CT scanner
Unrestricted O-arm® and C-arm access

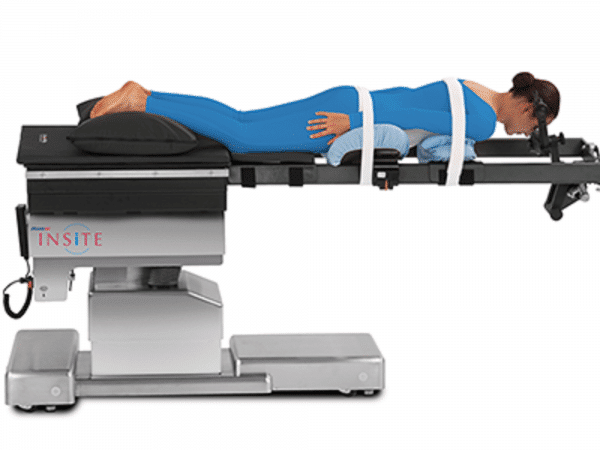

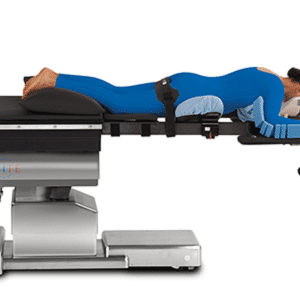

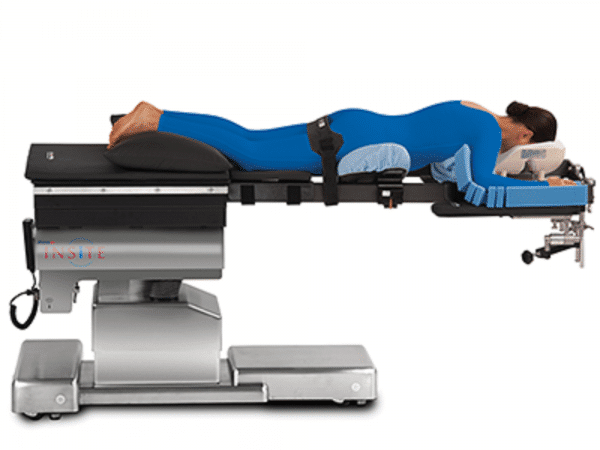

Prone Positioning Advantages:
- Total spine access
- Open frame design reduces vena cava compression, minimizes bleeding, improves visualization at the surgical site
- Customizable pad and component placement to meet individual patient needs
Positioning Flexibility:
Patient head orientation can be at the cantilever or the pedestal end
Procedures:
- Spine: Cervical to Sacrum prone positioning on open frame
- Orthopedic: Foot/Ankle, trauma where traction is not required – positioning on Supine Top
- Pain Management
- General Surgeries without flex required
- Imaging procedures utilizing the BodyTom®, O-arm® or 3D C-arm
- Cervical Mounting Device permits cranial stabilization options
- 5-way articulating armboards easily remove or pivot out of the way for prone patient transfer
- One piece, carbon fiber Supine Top converts the open frame for supine and lateral positioning
- Universal Side Rail Adaptor and Retractor Adaptor for mounting ancillary equipment
- ProneView® Protective Helmet System offers head and eye protection for the prone patient
- Tempur-pedic® Medical Pad technology incorporated into all patient surfaces
- Backlit Hand Pendant controls all table functions; Floor Locks, Height, Lateral Roll, Tren/Rev Tren and Return to Level
- Self Compensating, Power Floor Locks
- Stainless Steel Shrouded, Low Profile Base
- AC or Battery Operated
- Emergency Stop
- Emergency Floor Lock Override System
- Standard OR Accessory Rails on Pedestal End
Positioning Capabilities:
- Prone

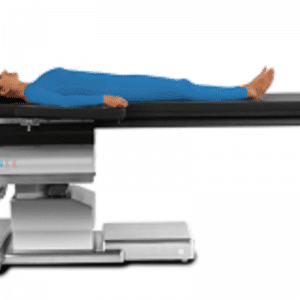

- Supine

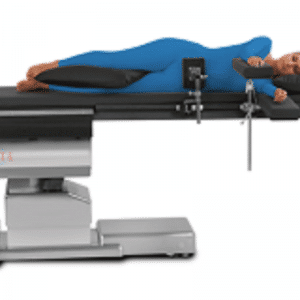

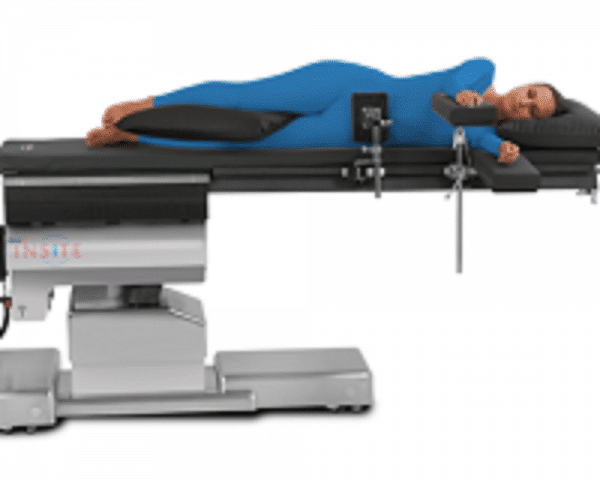

- Lateral
Total Table Length | 90 in. (229 cm) |
Table Top Length | 85 in. (216 cm) |
Pedestal Top Width | 21 in. (53 cm) |
Pedestal Top Length | 30 in. (76 cm) |
Imaging Area Length | 55 in. (140 cm) |
Imaging Area Width | 21 in. (53 cm) |
Height Range | 32 in. – 42 in. (81 cm – 107 cm) |

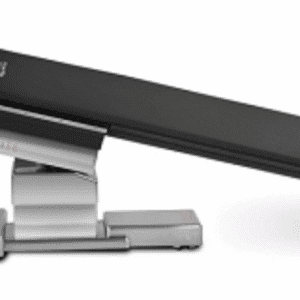

Trendelenburg / Reverse Trendelenburg | 15° |
Lateral Roll (Tilt) | ± 20° |
Patient Weight Capacity | 450 lbs (205 kg) |
*Subject to Change
STANDARD COMPONENTS: 6844-150 |
INSITE® Hand Pendant |
6844-140 | Arm Board Mounting Bracket |
6844-172 | Pedestal End Arm Board Bracket |
6988-530 | Articulating Arm Board Assembly w/ Pad |
6844-132 | INSITE® Crossbar |
6844-119 | Cervical Mounts |
6844-146 | Face Plate |
D28590CE | Re-usable ProneView® Adjustable Mirror Platform |
D28501CE | Re-usable ProneView® Helmet |
6844-170 | INSITE® Chest Pad |
6844-144 | Chest Support Plate |
6844-163 | Contoured Hip Pad, Left |
6844-162 | Contoured Hip Pad, Right |
6977-739 | Buttocks Strap |
6844-148 | Leg Board w/Pad |
6977-939 | Retractor Adaptor |
6844-169 | Supine Top w/ Pad |
6977-959 | Universal Side Rail Adaptor (2) |
9600-787 | Patient Safety Strap (2) |
6844-30 | Table Cover |
*Subject to Change
